Microphone cable XLR 3-pole female - XLR 3-pole male SAMURAI Roxtone SMXX200L3
Our bestseller
Microphone cable XLR 3-pole female - XLR 3-pole male SAMURAI Roxtone SMXX200L3
High performance premade unbalanced microphone cable with ROXTONE connectors: RX3FP-NT and RX3MP-NT
Plugs: 1 x XLR 3-pole male - 1 x XLR 3-pole female
Features
- Ergonomic heavy duty design with Zinc alloy shell and PA 30% GR bushing
- Fine stranded wire for high-quality signal transmission
- Very robust, with thick soft PVC jacket
- Good shielding provided by dense copper spiral shielding
- Special cage type female contact, increases conductivity, designed to avoid moving
- Without locking “window” makes the housing more strength and increases the durability
- Low Noise High Fidelity - microphone cable with 24AWG oxygen-free-copper center conductors provides enhanced signal transfer, the PVC insulation material and the high-density stranded copper double shield provide noise rejection for quiet operation
- Very robust due to the large conductor diameter
- ROXTONE brand engraved on the shell
- Patent protected
Applications
- High quality microphone cable for home recording and stag
Technical Data
Connector 1

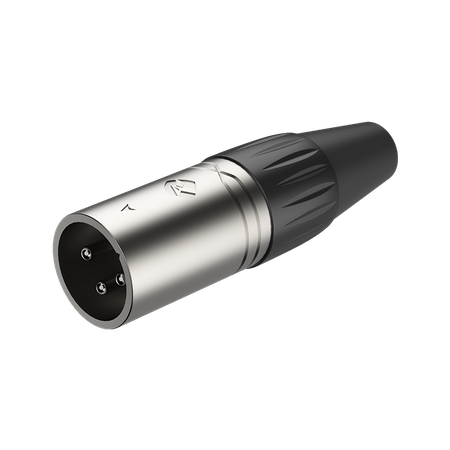

3 pole XLR female RX3FP-NT
Connector 2
3 pinowy wtyk XLR męski RX3MP-NT
Capac. cond./cond. per 1 m
58 pF
Capac. cond./shield. per 1 m
115 pF
Cond. resistance per 1 km
53 Ω
Shield. resistance per 1 km
25 Ω
Insulation resist. per 1 km
> 1 GΩ
Surge impedance 1 km
approx.100 Ω
Physical Data
Cable Length [m]
3
Colour
Black
Outer diameter cable [mm]
6.0
AWG
24
No. of inner conductors [mm²]
2 x 0.22
Copper strand per conductor [mm]
28 x 0.10
Conductor material
Copper
Shield
PE 1.40 mm
Copper spiral shielding 80 x 0.10 mm
Shielding factor
95%
Insulation material
PVC
Multipack
60
General data
Guarantee period
24 months
Country
China
Discontinued by Manufacture
NO
