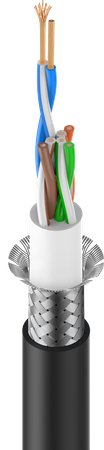

Flexible CAT5e data cable S/UTP - 26AWG - 4 x 2 x 0.15 mm² Roxtone CAT5FB
Our bestseller
Flexible CAT5e data cable S/UTP - 26AWG - 4 x 2 x 0.15 mm² Roxtone CAT5FB
Features
- Highly flexible CAT5e data cable down to -40 °C
- S/UTP ( braided shielding + unshielded twisted pairs )
- Very robust TPE jacket
- EtherSound up to 50 m
- Halogen-free and Flame retardant
Applications
- Network cable for mobile applications and drum storage
- Better to use on stage or outdoor events
- Use for data system technology
To download
Resources on Safety and Products
Brand
Entity responsible for this product in the EU
Kera Audio Arkadiusz TrochymiakMore
ProducerNingbo Roxtone Audio Technology Co.,LtdAddress:
Tai'an Middle Road 188/Room1002Postal code: 315199City: NingboCountry: ChinaPhone number: +86 574 87154705E-mail: info@roxtone.com
Responsible entityKera Audio Arkadiusz TrochymiakAddress:
Kieleńska 9Postal code: 84-208City: KłosowoCountry: PolandPhone number: 0048 58 526 14 65E-mail: biuro@kera-audio.pl
Symbol
CAT5FB
Producer code
6974862549011
Product type
Cables
Type
Other Cables
Technical Data
Capac. cond./cond. per 1 m
45 pF
Capac. cond./shield. per 1 m
70 pF
Cond. resistance per 1 m
122 mΩ
Shield. resistance per 1 m
37 mΩ
Temperature range [°C]
-40 - +85
AWG
26
Shielding factor
90%
Physical Data
Colour
Black
Cable Length [m]
100
Outer diameter cable [mm]
6.4
No. of inner conductors [mm²]
4 x 2 x 0.15
Copper strand per conductor [mm]
19 x 0.10
Shield
Braided shielding with 128 x 0.10 mm
Insulation
HDPE
General data
Guarantee period
24 months
Country
China
Discontinued by Manufacture
NO
Safety - warning type
Not suitable for children under 5 years
